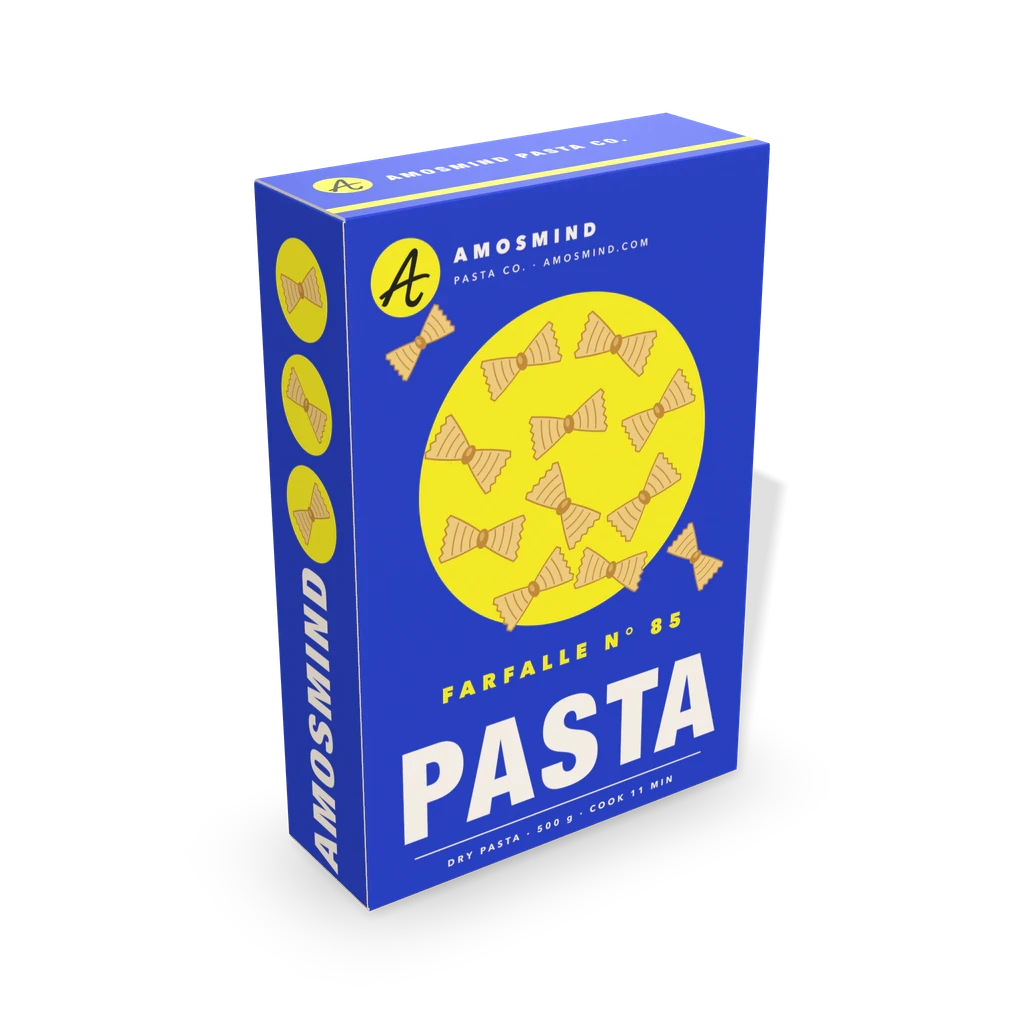

Vertical box mockups in real-time 3DHeight first, with a tall front panel
A vertical box mockup starts with the height: it is the largest of the three numbers. Pick a square, slim or wide-front carton, type your size and place your artwork on the front panel.
Tall boxes compared by base and opening
Check the footprint, how slender each box stands and which ends open before you pick one.
| Box | Base, L × W | Height ÷ width | Opens at |
|---|---|---|---|
| Tall box | 60 × 60 mm, square | 3 | Top and bottom: both lids hinged on the back wall |
| Tall bottle box | 85 × 85 mm, square | 3.9 | Top and bottom: lids on opposite walls |
| Perfume box | 75 × 40 mm | 4 | Top and bottom: both lids hinged on the back wall |
| Slim tall box | 100 × 45 mm | 6.7 | Top only: tuck lid, glued bottom |
| Pasta box | 190 × 65 mm | 4.3 | Neither end: both glued shut |
| Cereal box | 190 × 60 mm | 4.7 | Top and bottom: both tuck flaps behind the front wall |
| Three piece box | 200 × 120 mm | 1.5 | A shallow lid at the top and another at the bottom of a tube body |
Height ÷ width uses the starting size and changes when you type a new one; tuck end cartons reach 350 mm high, the Pasta box 380 mm and the Tuck top box 300 mm.
Who makes tall box mockups
Each kind of seller starts from a different box. Find yours and open it at its starting size.
Bottle and jar brands
You sell a bottle or a tall jar. Show it in a tall carton on a square base.
Fragrance and personal care
You sell a perfume bottle, a tube or a slim pack. Show it in a narrow carton with the brand on the front.
Dry food brands
You sell pasta, rice or cereal from a wide front panel on the shelf. Put your front-of-pack design on that panel.
Vertical boxes to start from
Each one opens at the size shown and takes any size inside its range.

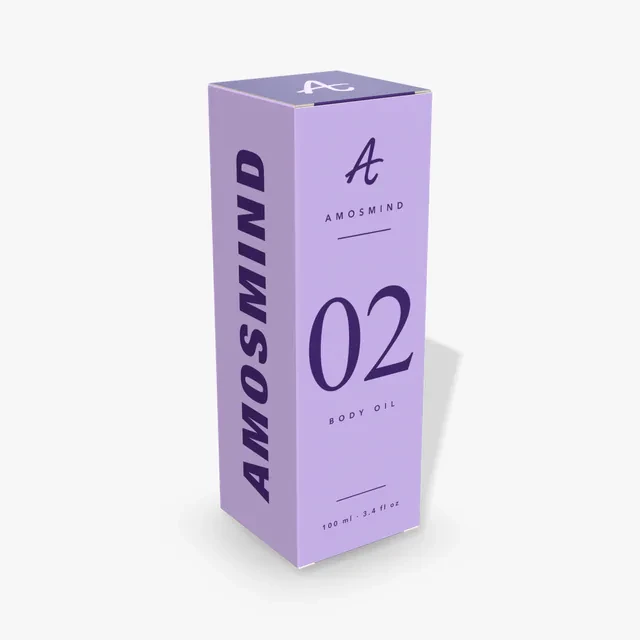

Tall box
The Perfume box set to 60 × 60 × 180 mm. A straight tuck end carton with both lids hinged on the back wall.

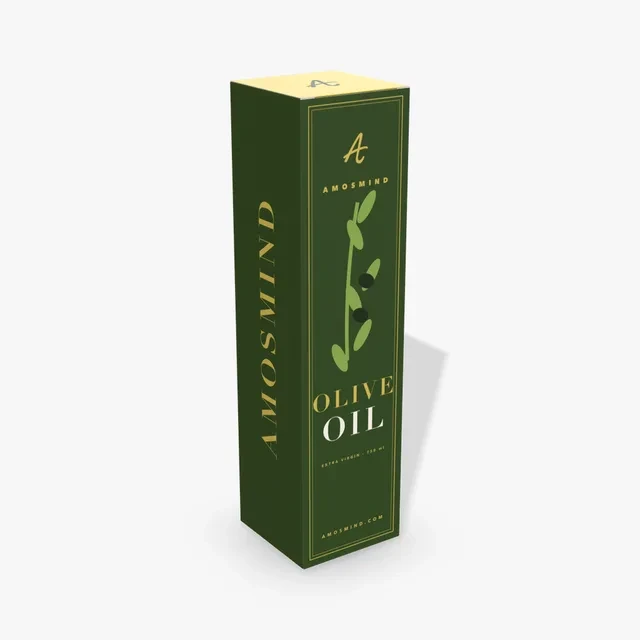

Tall bottle box
The Medicine box set to 85 × 85 × 330 mm. A reverse tuck end: the top lid hinges on the back, the bottom lid on the front.

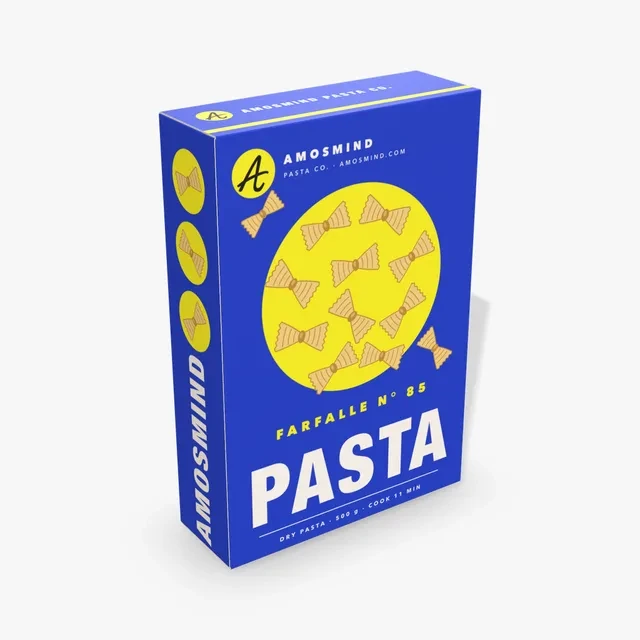

Pasta box
A seal end carton: a paperboard tube with both ends glued shut. Made in 0.5 mm paperboard.

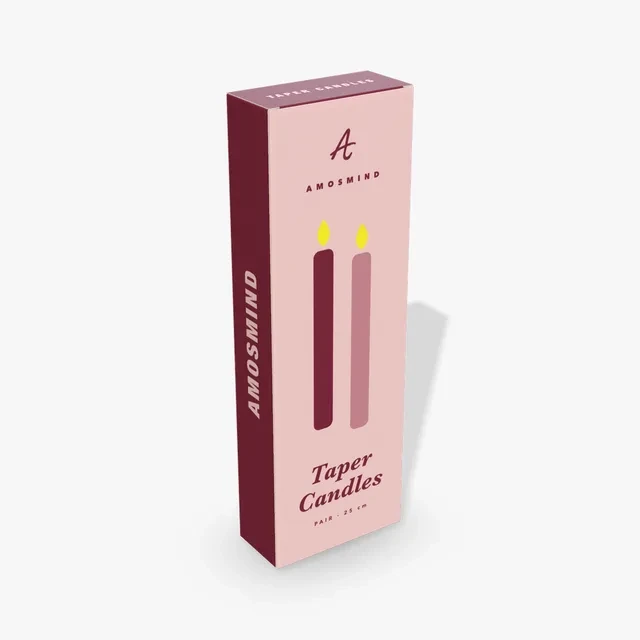

Slim tall box
The Tuck top box set to 100 × 45 × 300 mm. A tuck lid on top and a glued bottom.

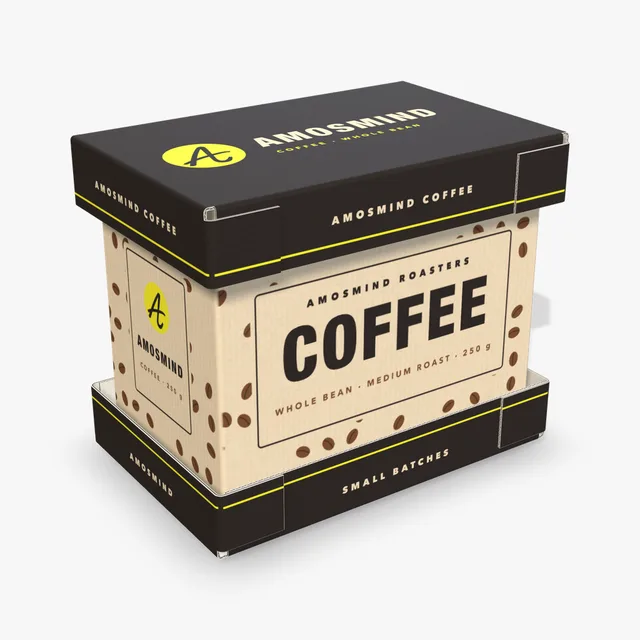

Three piece box
A corrugated tube body with a shallow lid at the top and another at the bottom. Lid, Sleeve and Base print separately.

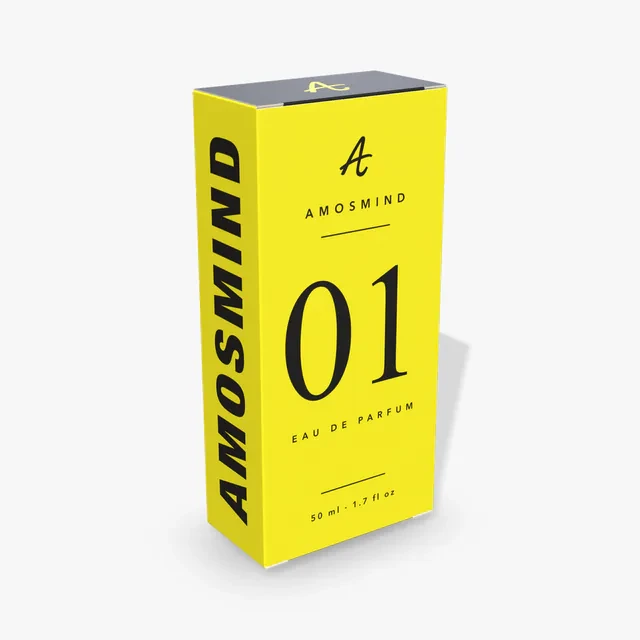

Perfume box
Starts at 75 × 40 × 160 mm. Thin paperboard with both lids hinged on the back wall.
How to make a vertical box mockup

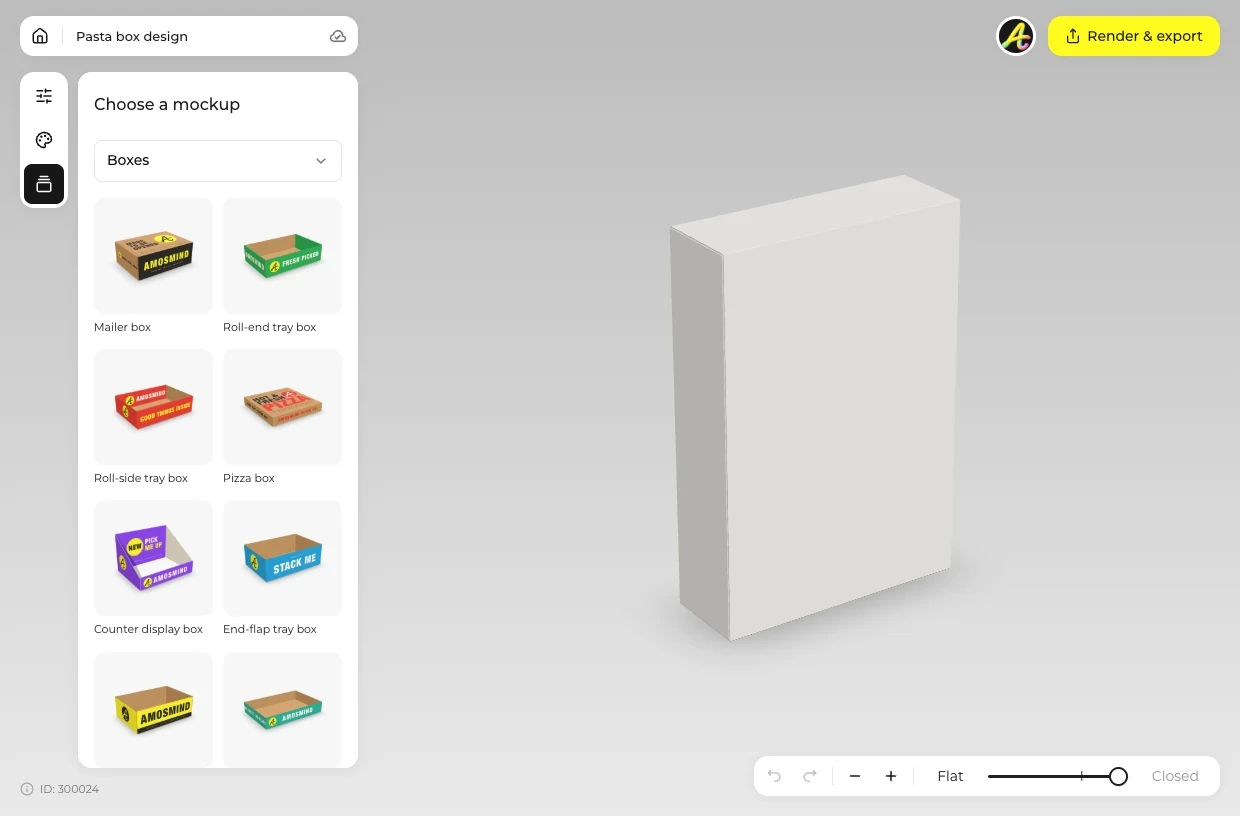

Pick a vertical box
Choose a square, slim or wide-front box from the list above.

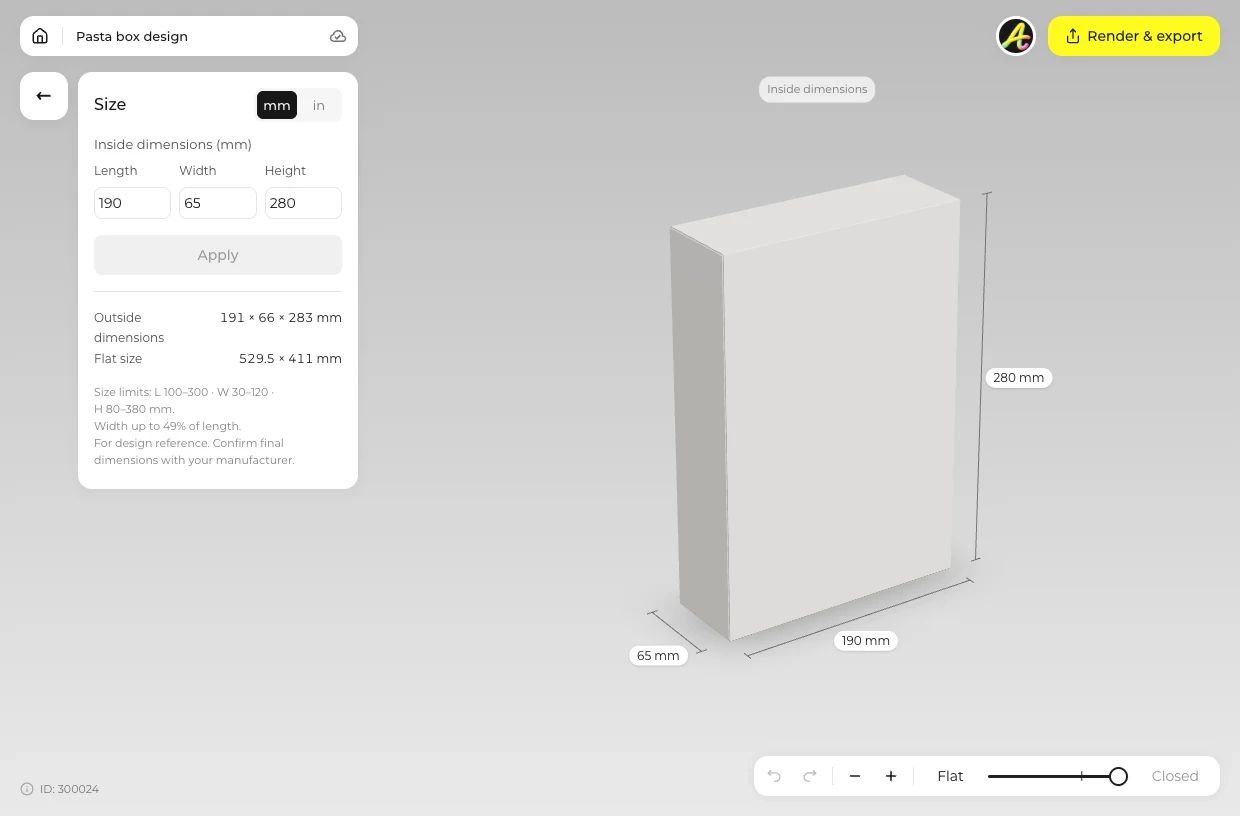

Make height the largest
Open Size and type length, width and height in millimetres or inches, with the height as the largest number. Switch the board in Material.

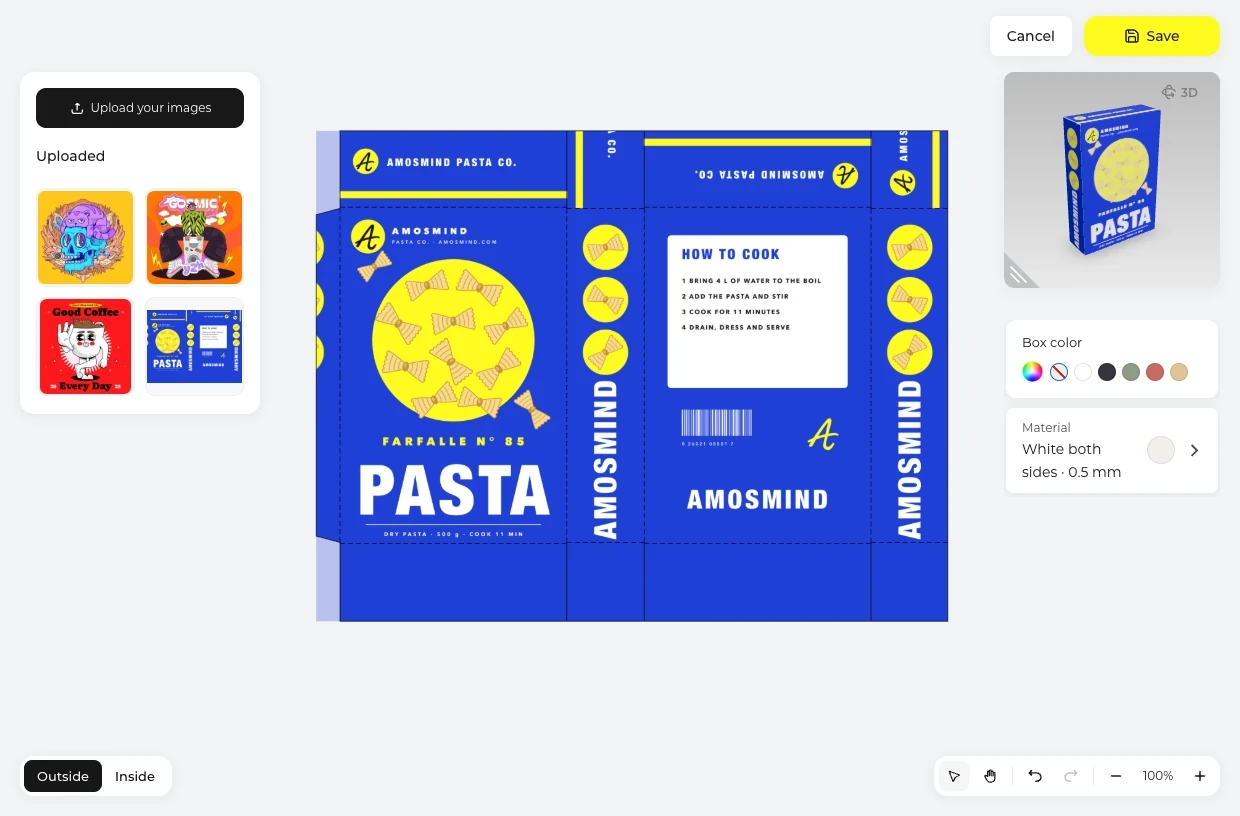

Fill the front panel
Click Upload artwork and place your design on the tall front panel of the dieline, on the Outside or the Inside.

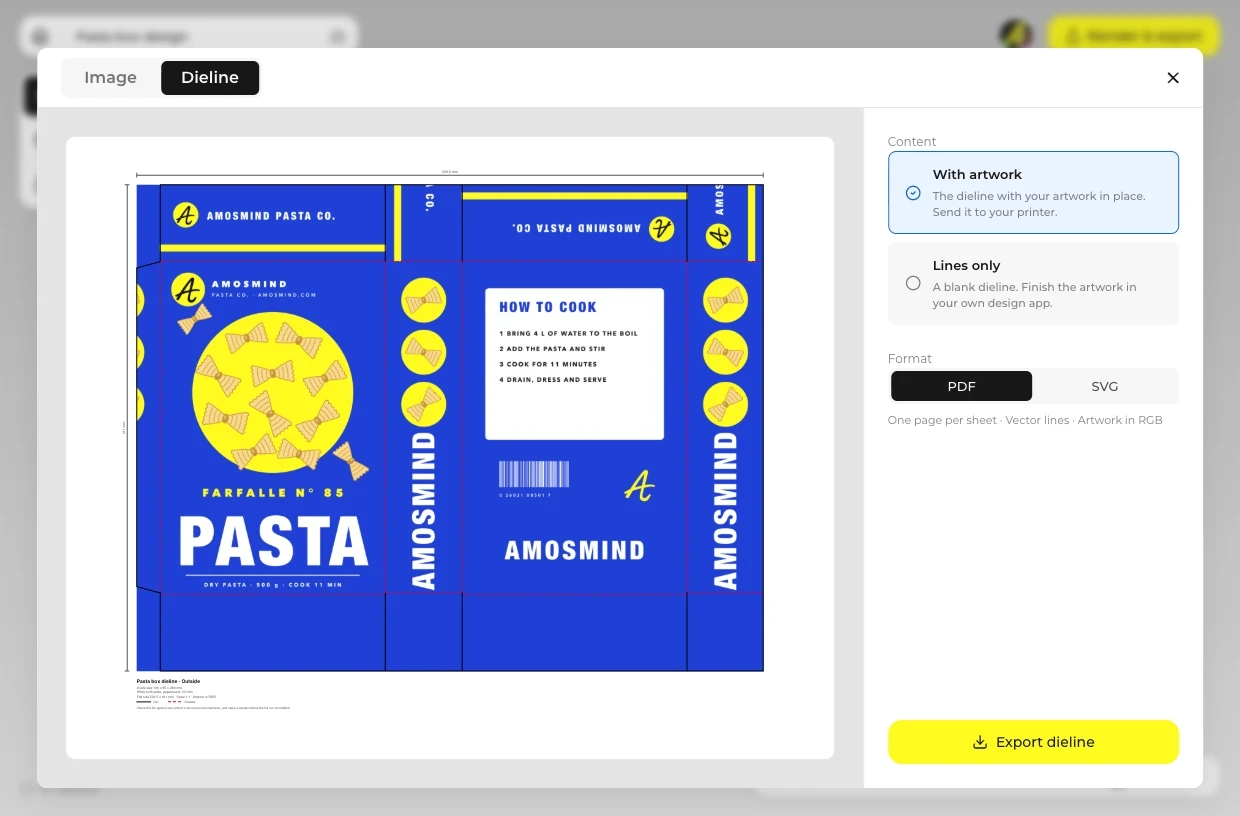

Render it standing
Stand the box upright and open Render & export. Use Image for a 2K or 4K JPG or PNG, with a Transparent Background if you need one, or Dieline for a PDF or SVG.
Explore more box mockups
Every box opens in the same live 3D editor.
Paperboard or corrugated for a tall box
Most boxes on this page are thin paperboard cartons. The Three piece box is the corrugated one.
| Compare | Paperboard | Corrugated |
|---|---|---|
| Boxes here | Tall box, Tall bottle box, Slim tall box, Pasta box, Cereal box, Perfume box | Three piece box |
| Thickness | 0.3 to 0.6 mm; Pasta and Tuck top boxes 0.5 mm | 1.5 or 3 mm, or 0.5 mm paperboard |
| Closes with | Tuck lids or glued ends | A lid at each end of a tube body |
| Printable | Outside and Inside | Lid, Sleeve and Base |
Thin paperboard keeps a tall front panel smooth for print; the corrugated Three piece box suits heavier sets.
Vertical box mockup FAQ
Short answers about height, proportions and files.
What are the different types of box design?
The vertical boxes here are built as tuck end cartons (Perfume, Medicine and Cereal boxes), a seal end carton glued at both ends (Pasta box), a Tuck top box with a glued bottom and a corrugated Three piece box. By proportion they are tall and square, tall and slim, or tall with a wide front.
How do I design my own box?
Pick a vertical box, open Size and make the height the largest number. Click Upload artwork, put the main design on the tall front panel and check it with the box standing in 3D. Then render the image, or export the dieline as a PDF or SVG for your printer.
How to make a 3D box image?
The box here is already a 3D model built from its dieline. Turn it so it stands on its base, set the Background and render a JPG or PNG at 2K or 4K, all in your browser.
Vertical box or rectangle box: what is the difference?
A vertical box is a rectangular box whose height is the largest of its three numbers. The Rectangle boxes page also covers long and flat boxes; this page keeps to the standing ones.
How tall can a vertical box be?
The tuck end cartons go up to 350 mm inside, the Pasta box to 380 mm, the Tuck top box to 300 mm and the Three piece box to 270 mm. The Three piece box also keeps its height at most four times its width.
Can I render a vertical box in a portrait format?
Stand the box on its base and render it at 2K (2048 px) or 4K (4096 px) on the long edge, as a JPG or PNG. Choose Transparent in the Background panel and you can crop the PNG to any portrait frame in your own layout.
Can I make a box for a tall bottle?
Yes. The Tall bottle box is the Medicine box set to 85 × 85 × 330 mm, and you can type any size within 30–250 × 20–150 × 50–350 mm. The box is shown empty, with no neck insert.
Can I make a vertical box mockup for free?
Browsing the boxes and turning them in 3D is free. Log in with an email code or Google to upload artwork, save projects and render images. Exporting a rendered image or a dieline needs a free account; rendering and downloads are free right now.
