Indie fragrance brands
See the carton in the size of your own bottle before paying for a print run.
- Sized to your own bottle
- White or kraft board
- A dieline for the printer quote
Perfume box mockup
A 3D mockup of a perfume box: a tall folding carton with a tuck flap at each end. Set it to your own bottle, keep it white or switch to kraft, and print all four sides.
Customize in the 3D editor
In the editor you can
- Size the carton to your bottle
- Print the front, back, sides and both ends
- Export images up to 4K and the dieline for your printer
- Box
- Perfume boxECMA A20.20.01.01
- Inside size, mm · editable
- 75 × 40 × 1603.0 × 1.6 × 6.3 in
- Material
- PaperboardWhite both sides
- Print sides
- Outside, Inside13 panels, 12 creases
- Flat size
- 238 × 258 mmDieline, starting size
- Render
- Up to 4KJPG or PNG
Sizes are inside dimensions. The mockup shows the board color and your artwork; print color, coatings and foil are confirmed on a printed sample.
Wiki
Perfume box
Most perfume is sold in a folding carton: a tall, narrow box of thin paperboard that protects the bottle and carries the brand. The common construction is the straight tuck end, where the top and bottom closures are hinged on the same wall. In the ECMA code of carton styles it is A20.20.01.01.
How it is built
The four walls are one strip of paperboard glued along a seam, so the carton is delivered flat and springs into a tube. Each end has a closure panel with a tuck flap and two small dust flaps. On a straight tuck end both closures open toward the back, so the front panel has no raw edge at the top. Our model has 13 panels and 12 crease lines.
Sizes and board
The carton is sized to the bottle with a few millimetres to spare. This one starts at 75 × 40 × 160 mm (3.0 × 1.6 × 6.3 in); at that size the flat sheet measures 238 × 258 mm. Cartons like this are cut from coated paperboard of about 350 gsm, or 16 to 18 pt (0.4 to 0.5 mm).
Printing
Perfume cartons are printed in full color on white board and often finished with foil, embossing or a matte coating. Those finishes are added at the printer; the mockup shows your artwork and the board color.
Perfume box sizes
Each perfume carton is cut to its bottle. These are real carton sizes to start from.
| Carton | Inside, in millimetres | Note |
|---|---|---|
| Slim, for a flat bottle | 75 × 40 × 160 mm | The size this mockup starts at. |
| Square, mid-size | 53 × 53 × 130 mm | A size sold as a custom perfume carton |
| Stock carton, tall | 57 × 57 × 152 mm (2.25 × 2.25 × 6 in) | A stock folding-carton size |
| Stock carton, short | 57 × 57 × 83 mm (2.25 × 2.25 × 3.25 in) | Minis and travel sizes |
There is no standard perfume carton: each one is cut to its bottle. Measure yours with the cap on and add 2 to 3 mm each way.
Who makes a perfume box mockup
A fragrance is judged by its box long before the bottle is opened.
Packaging designers
Show the client every panel, not one fixed front view.
- All four sides and both ends
- Any angle in 3D
- Images up to 4K
Design students
Hand in a carton that folds, with the dieline to prove it.
- See the flat-packed carton open into the box
- Standard ECMA construction
- Dieline with cut and crease lines
From perfume box mockup to printed carton

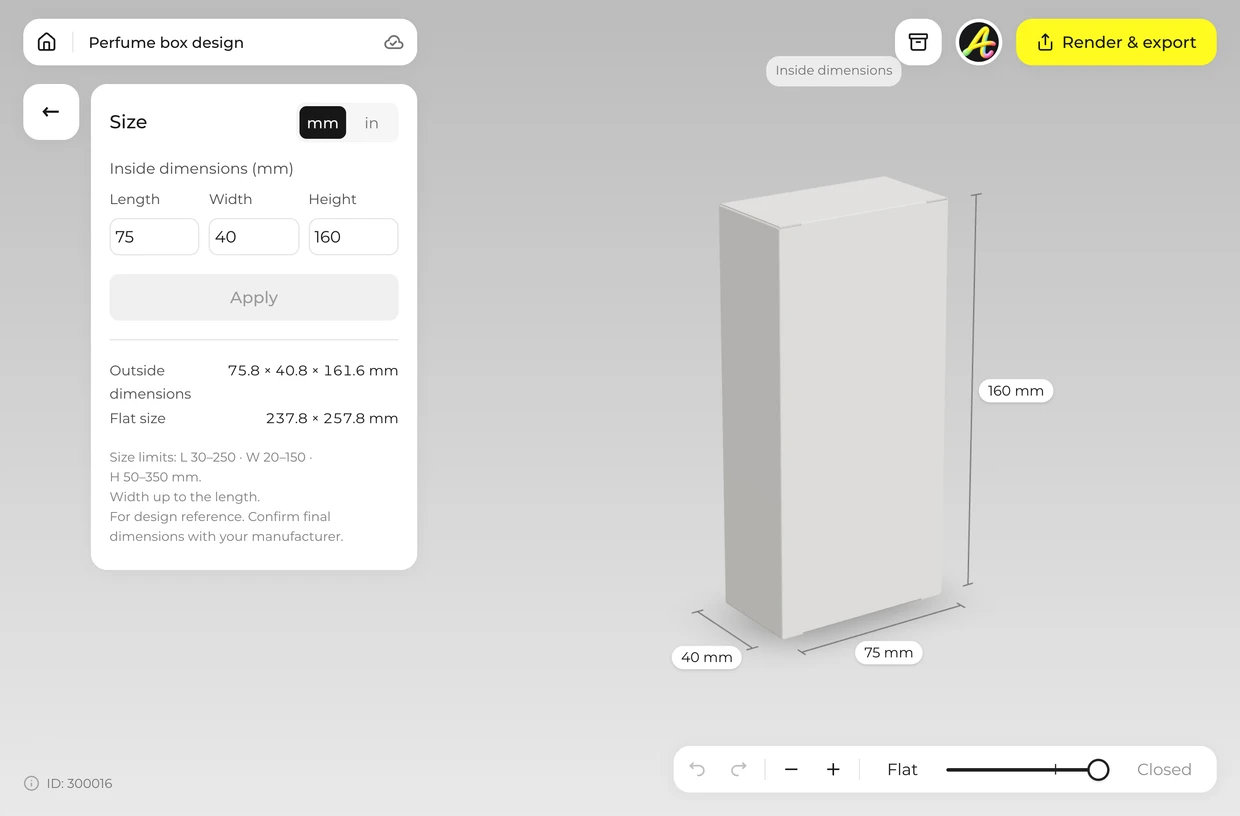

Set your size
Measure the bottle with its cap, add a few millimetres and type the inside length, width and height. The editor accepts 30–250 × 20–150 × 50–350 mm. Width can be up to the length.

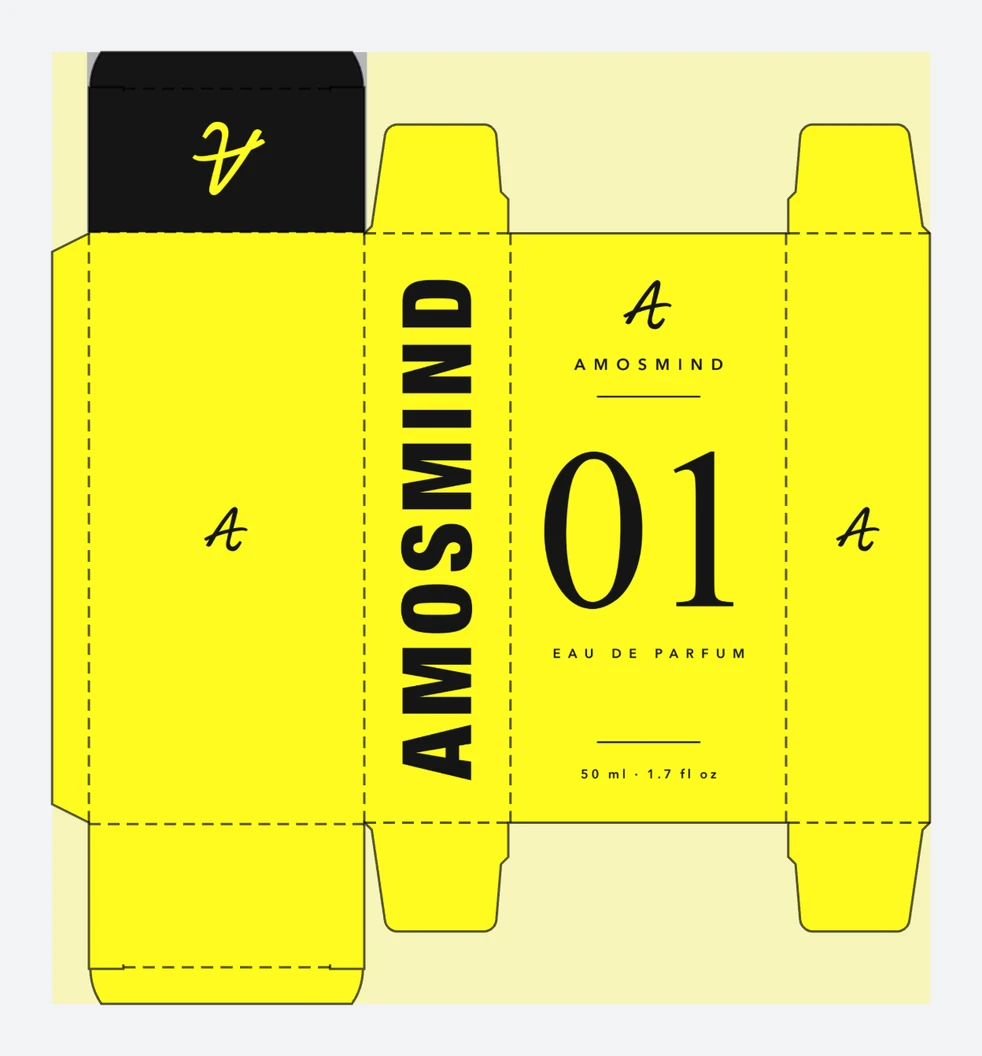

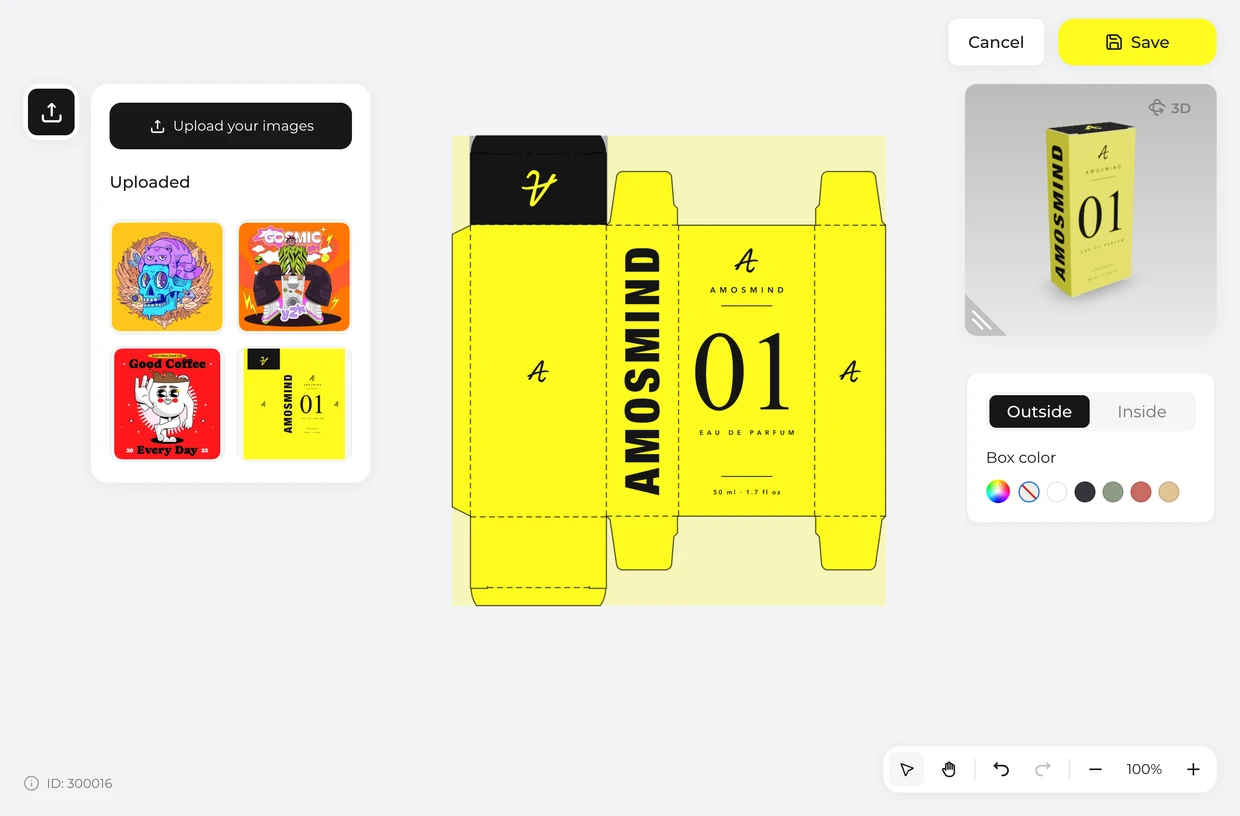

Place your artwork on the dieline
Click Upload artwork and drop your design on the flat sheet. The four walls sit side by side, with the glue flap at one edge and the closures above and below.

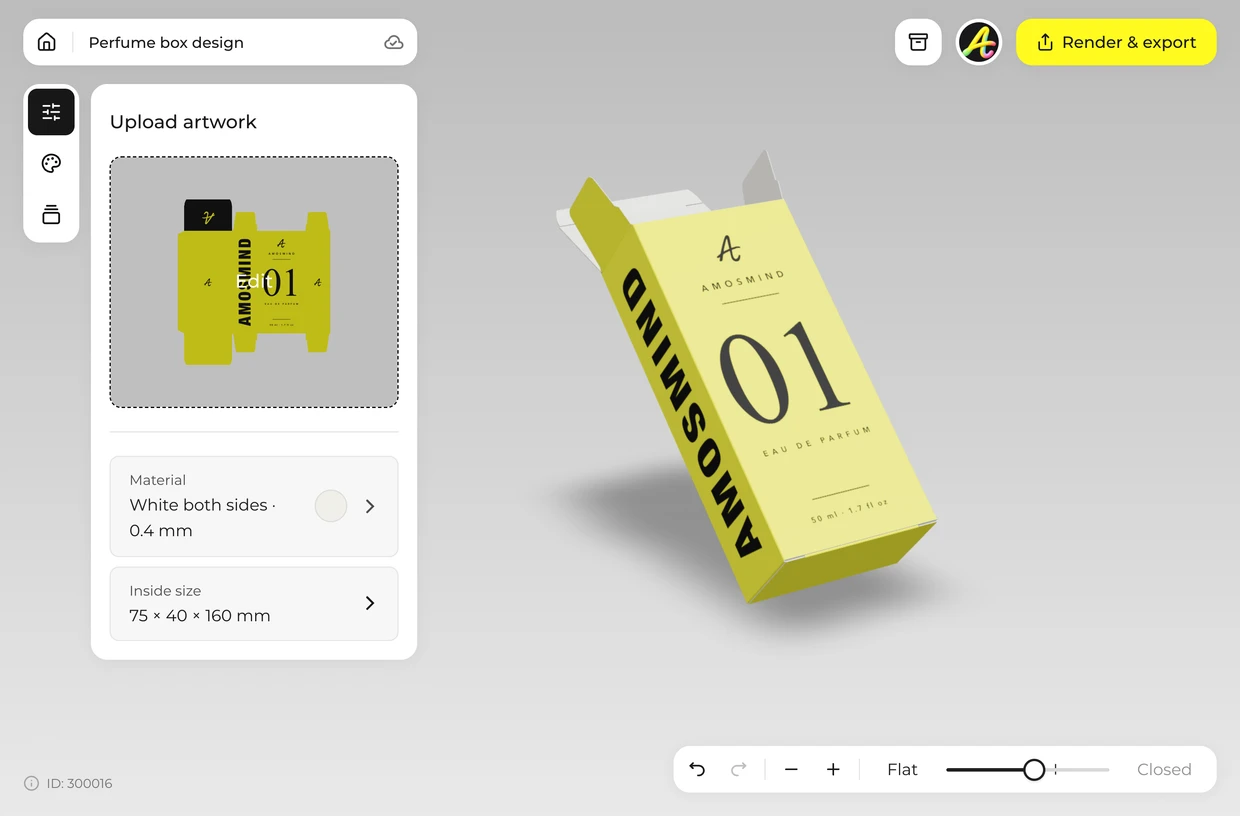

Fold it shut in 3D
Drag the Fold slider: the flat carton squares up, the bottom tucks in, then the top. Check that the front panel reads the right way up.

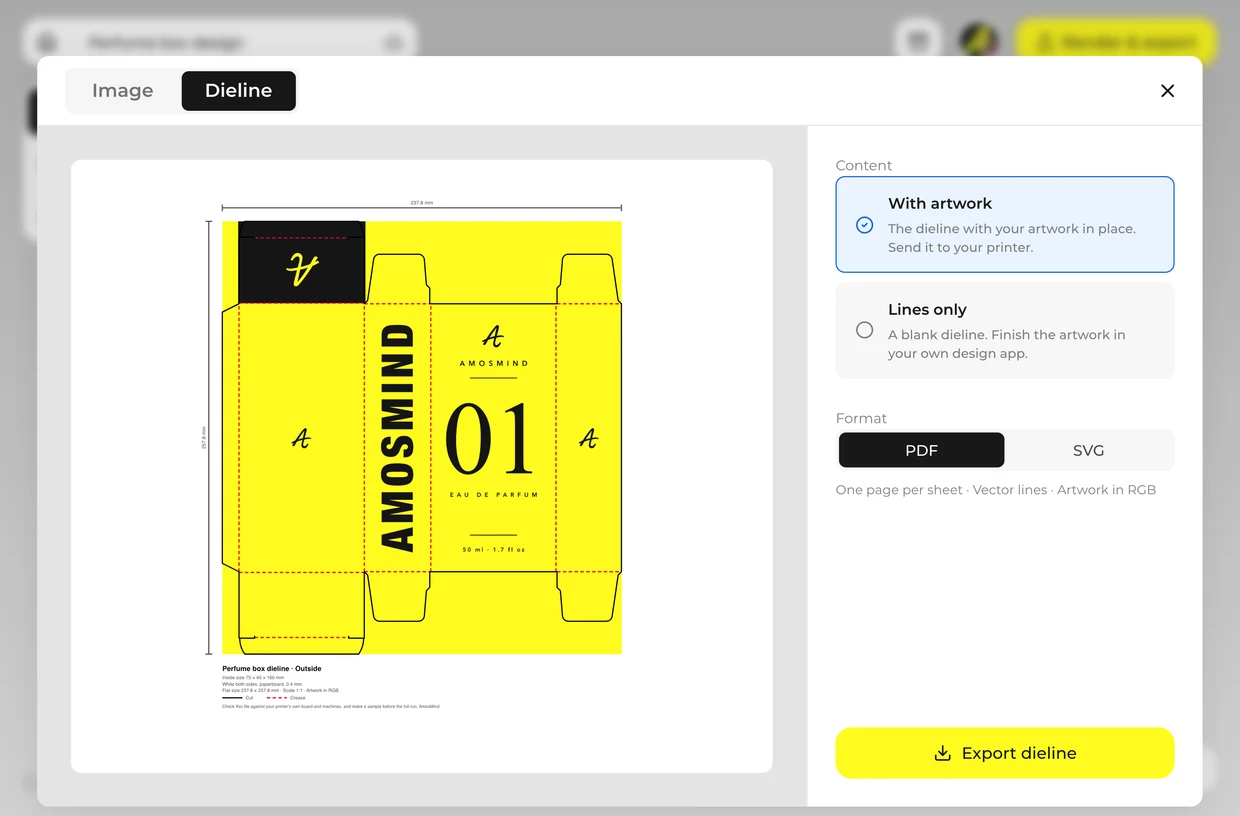

Export the image and the dieline
Render a JPG or PNG up to 4K for a line sheet or a store page. Export the dieline as a PDF or SVG at full size and send it to your carton printer. Ask them to check it against their own board and machines and to make a sample before the full run: board thickness, tolerances and glue areas differ from one factory to the next.
Explore more box mockups
Every box opens in the same live 3D editor.
What you can export from this perfume box mockup
Three kinds of file come out of the same project. The picture is for showing the box; the dieline is for making it.
| File | Format | Use it for |
|---|---|---|
| Image | JPG or PNG, 2K or 4K | Store pages, pitch decks, social posts |
| Cut-out | PNG with a transparent background | Your own layouts and product photos |
| Dieline | PDF or SVG at full size, 238 × 258 mm at the starting size | Your printer or box maker: cut lines, crease lines and your artwork in place |
The dieline is drawn from the size and board you set. It is a starting file for your printer, who will check it against their own board, machines and glue areas and make a sample before a full run.
Perfume box mockup FAQ
Short answers about sizes, materials and files.
What size is a perfume box?
It depends on the bottle; there is no standard. Custom perfume cartons are sold at sizes such as 53 × 53 × 130 mm, and stock folding cartons at 57 × 57 × 152 mm (2.25 × 2.25 × 6 in). This mockup starts at 75 × 40 × 160 mm and takes any size within 30–250 × 20–150 × 50–350 mm. Width can be up to the length.
How do I make a perfume box mockup?
Set the size of your bottle, click Upload artwork and place your design on the dieline, then render the image. It runs in your browser.
Does the mockup show the perfume bottle?
No. The page shows the carton on its own, so the picture is of your packaging. Place the exported PNG next to your bottle photo in your own layout.
Can I see foil or embossing on the mockup?
Not yet. The mockup shows your printed artwork and the board color. Foil, embossing and coatings are finishes you specify to the printer.
Can I download the perfume box template?
Yes. Export the dieline as a PDF or SVG at full size for the carton you set. Ask them to check it against their own board and machines and to make a sample before the full run: board thickness, tolerances and glue areas differ from one factory to the next.
Can I download the perfume box mockup as a PNG?
Yes. Choose Transparent in the Background panel and the box downloads as a PNG with no background, ready to drop into your own layout.
Is this perfume box mockup free?
Browsing the boxes and turning them in 3D is free. Log in with an email code or Google to upload artwork, save projects and render images. Exporting a rendered image or a dieline needs a free account; rendering and downloads are free right now.
